| Place of Origin: | China,Zhejiang |
| Brand Name: | SAYEAH |
| Model Number: | SY-850B |
| Certification: | CE |
| Minimum Order Quantity: | 1 |
1. The operation of the machine is controlled by PLC and touch screen
replacement.
2. The mold quide plate adopts four quide posts to ensure the mold clamping accuracy
3. The chain frame adopts fast cooling and wear-resistant design
4. The chain frame exits the safe mold change system, which can greatly reduce the difficulty of mold change
5. Heating in 5-6 sections of the heating furnace to ensure that the materials are fully heated in the heating furnace
6. The cup blowing system can adjust the cup blowing angle and air volume
7. Inteqrated design of hydraulic system to facilitate overhaul and maintenance
8. Servo stretching system, quality assurance, durable and not easy to break
9. Simple operation, reliable performance, low noise and high quality
10. lntegrated design of electric cabinet to simplify machine assembly and wiring installation process

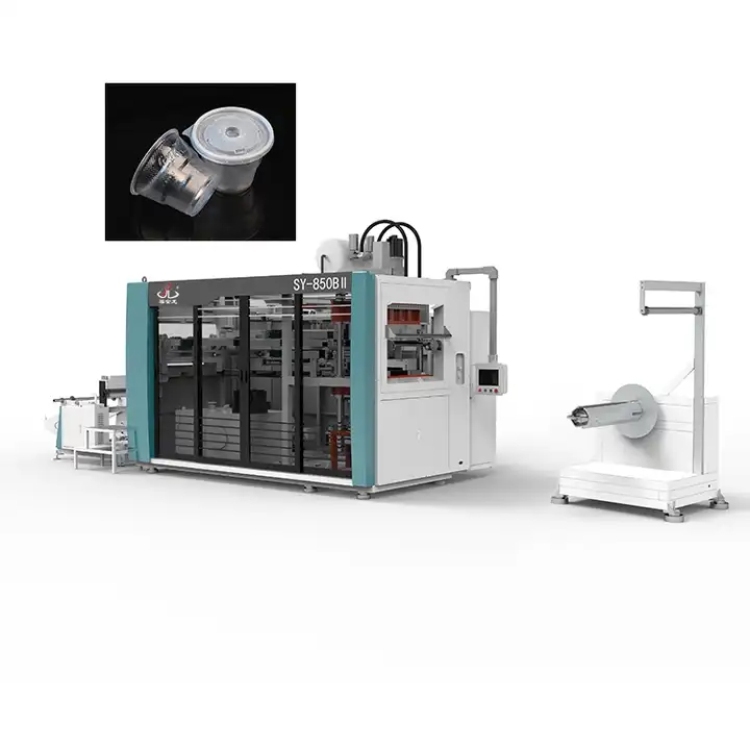

| Model | SY-850B II | SY-850B II |
|---|---|---|
| Power supply | 850*550mm | |
| Running Pattern | Hydraulic | Servomotor |
| Max.No-Load Speed | 35Cycles/min | 40 Cycles/min |
| Feeding Driven | Servomotor | |
| Servomotor | Servomotor | |
| Sheet Specification | THK: 0.2-2mm, W: Max.870mm | |
| Max.Forming Depth,Sample Height | ≤140mm with robot , ≤160mm by blowing | |
| Max.Sheet Roll Dia. | 1100mm,1T | |
| Electrical Consumption | 90KW/H | 80KW/H |
| Overall Power | 215kw | |
| Dimension | L4200*W1970*H3100 | |
| Weight | 8T | |
Unwinder
The unwinder was lifted by the electricity, and the sheet roll
max load weight is 1T. It can put two rolls one time for easy
replacement.
Touch
Screen
Easy to operate, all-electric adjustments can be done on
the touch screen.
Chain
Aluminum alloy can make sure the cooling effect better. The width
of the chain, forward or backward was adjusted by the motor.
Heater
It can adjust the temperature quickly and control the
temperature precisely, which can save energy.
Guides
It can option for hydraulic or servo motor-driven mode and has
strong power. Four-pillar can sure the guides run smoothly. And the servo stretch will make the product more
uniform and the mold forming more perfect. The automatic lubrication can prolong the life of the machine.
Electrical
The layout of the electrical cabinet is reasonable, and it
is easy to maintain. It can be upgraded and maintained remotely.
Winding
It is solid and durable. The operation is easy.
