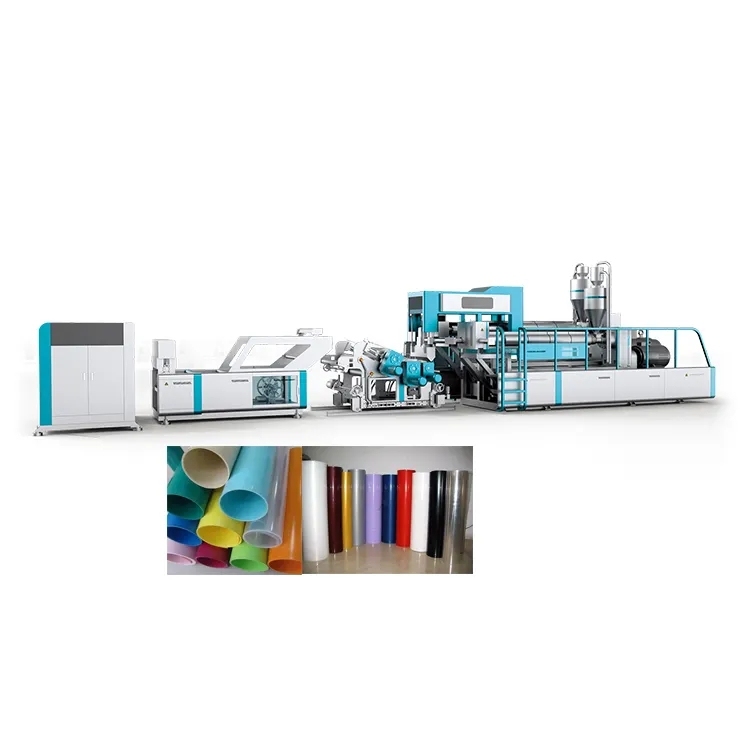

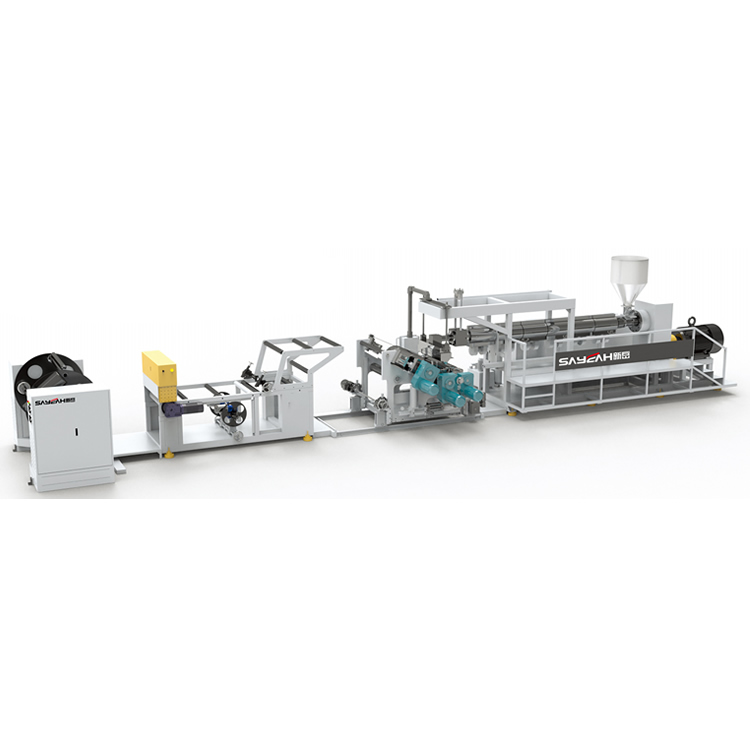

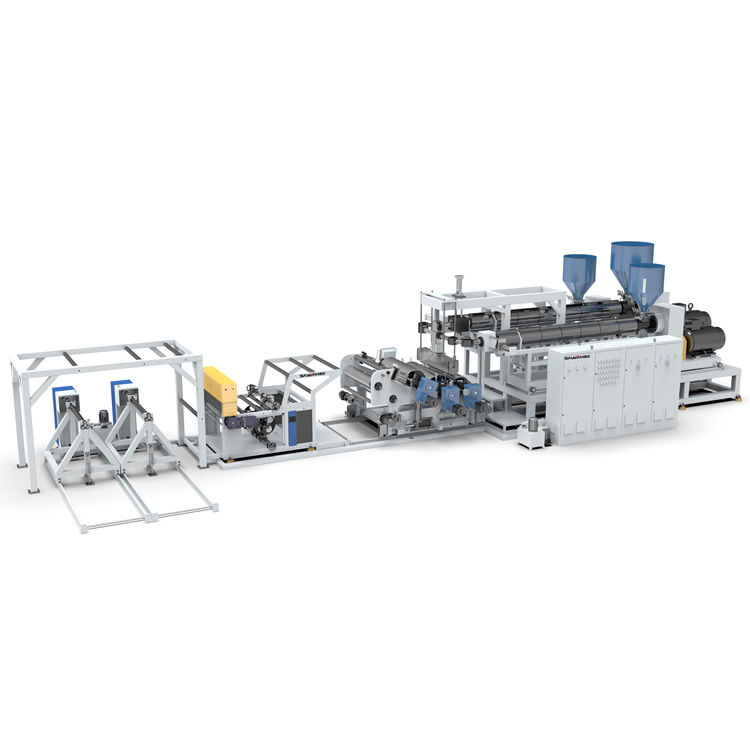

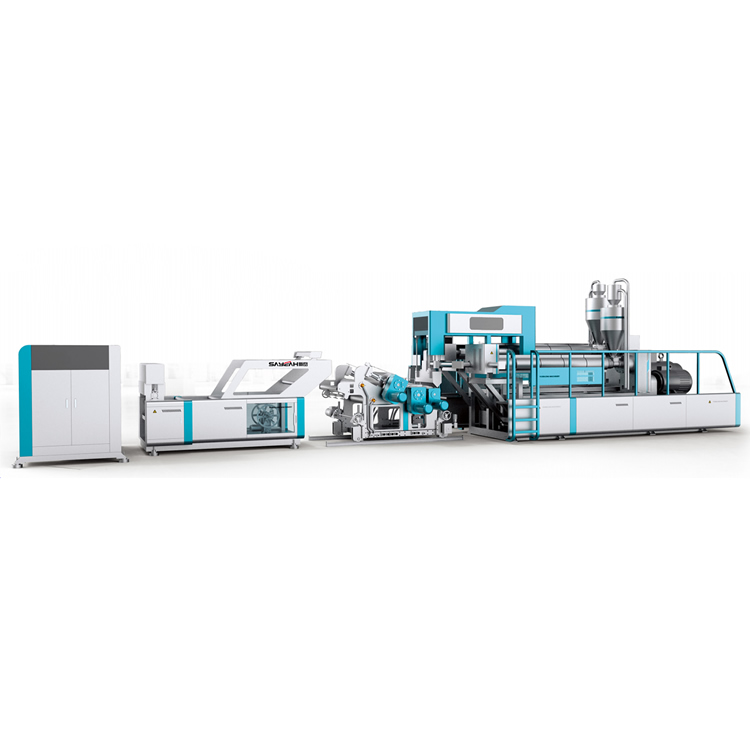

High performance single and multi-layer plastic extrusion machine PLA PET sheet extruder production line-Plastic Sheet Extruder-Zhejiang Sayeah Machinery Co.,ltd.

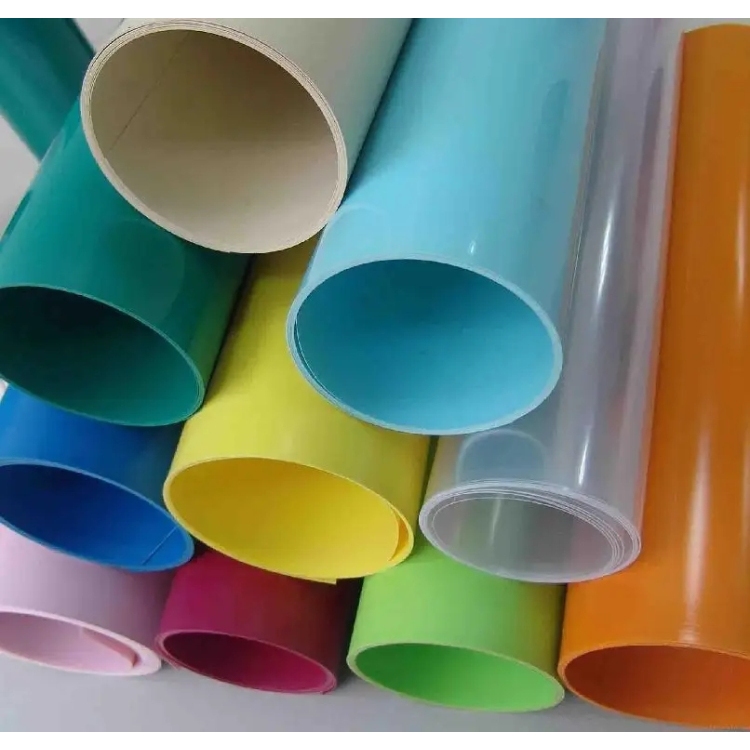

PETG sheet
PETG is called low temperature PETit’s a new environment-friendly packing material with features such as high luster,goodtransparency,excellent barrier property,self-adhesion,which is used for glue bonding and high-frequency processing.
CPET sheet
CPET is a kind of modified PET with good resistance to high temperature,it is usually used for package in microwave oven
PET stereoscopic optical grating sheet
It can be used as top grade package for cosmestics, medicine, tobacco & alcohol and common goods such as stationeradvertisements,posters and all kinds of cards
PLA sheet
PLA is a kind of line shape aliphatic polyesters. PLA can be used in rigid package of fruits, vegetables, eggs, cooked food and roast food, also can be used for packaging of sandwich, biscuit and some other packages like fresh flower

Model	SY-PET-75/40D	SY-PET-85/40D	SY-PET-85/40DH
Screw Mode	Twin Screw
Sheet Thickness	0.15-1.5mm
Max.Extrusion Capacity	500kg/h	600kg/h	800kg/h
Main Motor Power	132kw	160kw	220kw
Power Supply	380V/50HZ/3P .Three Phase Four Wires

6-stage reducer
The machine uses a high-power three-phase motor with a 6-stage reducer, which has sufficient power. The reduction box is equipped with an independent water-cooling pipeline to prolong the service life of the reduction box.

Feeding barrel
The feeding barrel adopts a transparent slotted design so that you can see the remaining material in the barrel and feed the material in time. The screw feed trough adopts a water-cooled design to prevent the blockage of the feed trough caused by melt backflow.

Screw
The screw is heated by 6-stage cast aluminum heating tile, using wear-resistant material 58Cr13, and the hardness reaches HV950.

Screen changer
The screen changer adopts double stations hydraulic pressure to ensure the screen changes without stopping and uses 38CrMoAIA high-quality material to prolong the service life.

High-precision T-die
Made of high-quality alloy steel, the inner flow channel is chrome-plated. It has high hardness and strong corrosion resistance capacity.

Touch screen
The response is fast and no delay by using Delta's industrial control touch screen. The operation interface is simple and easy.

Calendering rolls
The calendering three-roller adopts 0.08mm chrome-plated layer, and the hardness can reach HRC58-62. The design of the safety rope can stop the machine immediately in case of an accident, improving safety effectively.The gap between the main calendering rolls is manually adjusted and equipped with a dial indicator to measure the distance accurately. The accuracy can reach ±0.01mm.

Trimming/winding/traction device
Two pair knives can adjust the trimming width and depth.The trimming and winding device is driven by an independent motor, it can be used with online-crusher. The traction device adopts aluminum alloy cooling rollers. The main traction rubber roller is driven by an independent motor.

Rewinding device
Double-station non-stop rewinding device is driven by the torque motor. It has 6-speed adjustable torque, equipping a quick-release rewinding device, which can save your time and effort.
