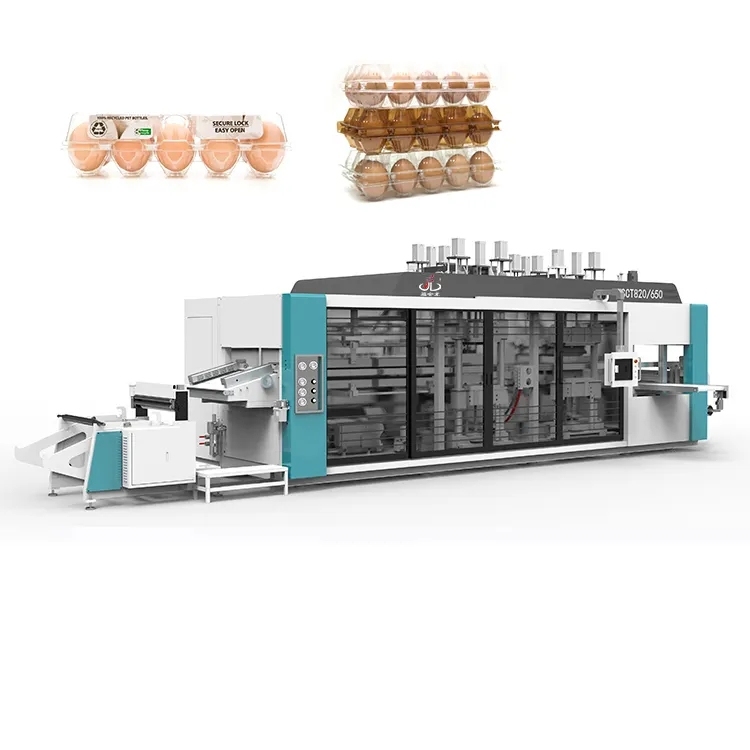

Disposable Microwave Pp Food Container Thermoforming Machine Egg Tray Making Machine-3/4 Stations Thermoforming Machine-Zhejiang Sayeah Machinery Co.,ltd.

1. European design, complete functions, suitable for diversified production lines, safe, efficient, energy-saving and hygienic
2. Unwinding station electric lifting, double roll holder. allow for single operator loading rolls up to 1T
3. Operator-friendly HMl, and the system has the function of remote connection
4. Fast and accurate temperature control system (error 1 degree), with hot furnace detection material drop and air source low pressure protection svstem
5.lntelligent operation, the whole machine is equipped with formula storage and automatic adjustment without shutdown
6.lt can share molds with models of most wel-known brands at home and abroad, and cooperate with existing production lines
7.Fast mold change system, which can facilitate fast, accurate and safe mold change and reduce machine downtime
8. Under any forming scheme, the clamping frame and plug assist function can be used alone or at the same time, greatly simplify the mold structure
9. Materials with strong shrinkage can adopt the sinale station in-mold-forming-cutting function to 100% ensure the edge cutting accuracy
10. High precision forming and cutting technology to achieve the perfect forming and cutting performance of high-speed control and low wear
11. The stacking station can be customized, which simplifies the stacking of complex parts and is convenient to meet further production needs
12. Optimize the design of electric cabinet and simplify the machine assembly and wiring installation process

Model	FSCT-820/650-2	FSCT-820/650-3	FSCT-820/650-4
Quantity Of Stations	2	3	4
Sheet Material	PP, PS, PVC, PET, HIPS, PLA, OPS, EPS, C-PET, C-PLA, ABS
Application	Plastic lid, container, egg tray, fruit box, cake box, box, plate, flower pot, etc
Forming Clamping Force	750KN
Punching Clamping Force	750KN
Max. Forming Area	820 X 650 mm
Max. Pos/Neg Depth	150/150mm
Max. Plastic Sheet Width	860mm
Max. Plastic Sheet Dia.	1100mm,1T
Thickness Of Plastic Sheet	0.15-2mm
Max. No-Load Speed	65Cycles/min
Air Consumption	4.5m3/min,0.6-0.8Mpa
Overall Power	185 KW	200 KW	215 KW
Dimension	L10000 x W2900 x H3150mm	L11200 x W2900 x H3150mm	L12500 x W2900 x H3150mm
Weight	15T	20T	25T
Power Supply	380v/50Hz Three Phase Four Wires

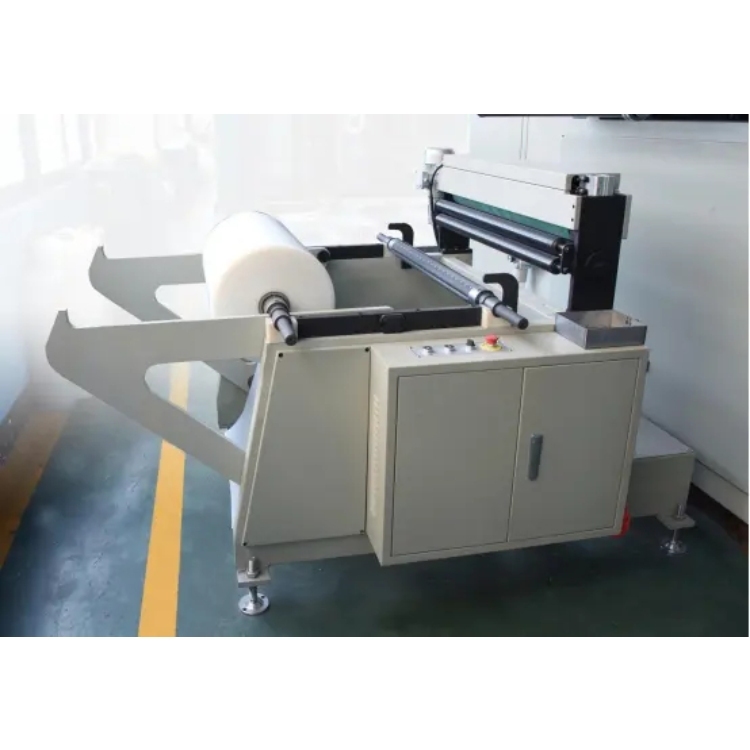

Sheet Loading& Feeding Station
Driving by motor. Sheet roll Max diameter 1M. With dust-free plate to keep the sheet clean.

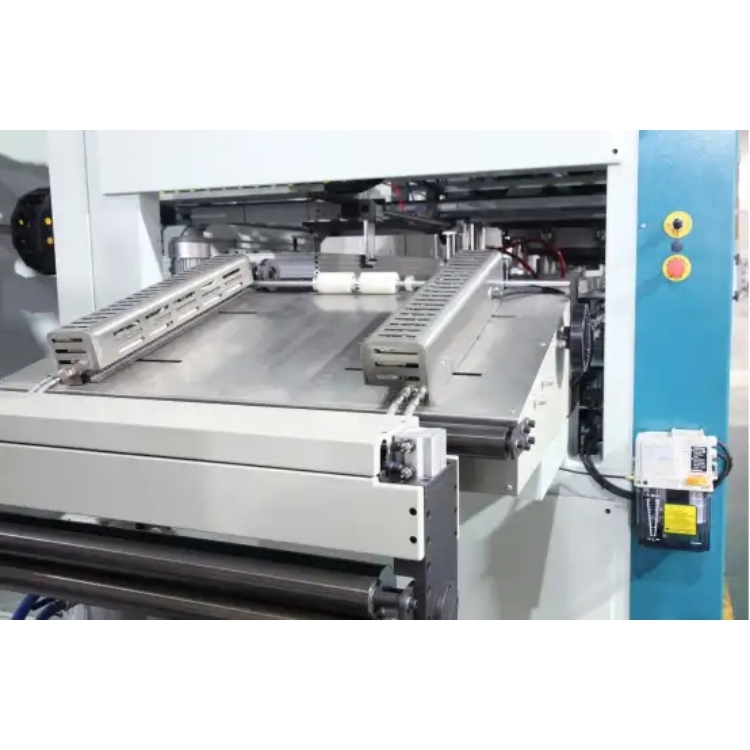

Preheater
Has the In-feed sheet edge pre-heater system before the sheet goes into the heater part,it reduces the defective percentage, keep dust-free environment to improve the quality of the product and prolong the life of conveying chain.

The Chain
The plastic sheet was sent by the sharp tooth, which was driven by the servo-motor. The width of the chain can be adjusted and wear cooling water, which can prolong the life of the chain and reduce the dust.

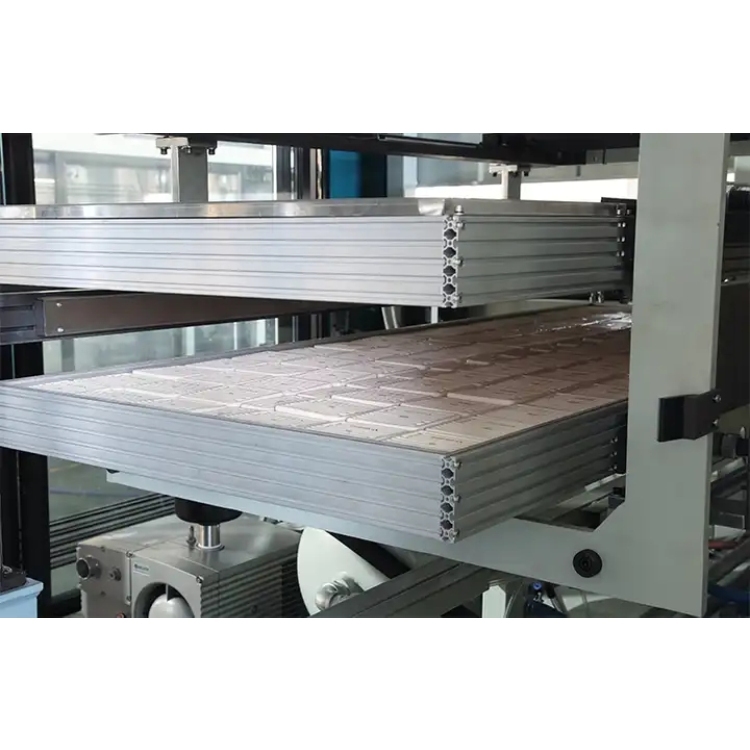

Ceramic Heater
Temperature is controlled precisely (the difference is within ±1℃). The working life of the ceramic heater is long and adopts the fully enclosed oven. The temperature controlling system is better and saves more energy.

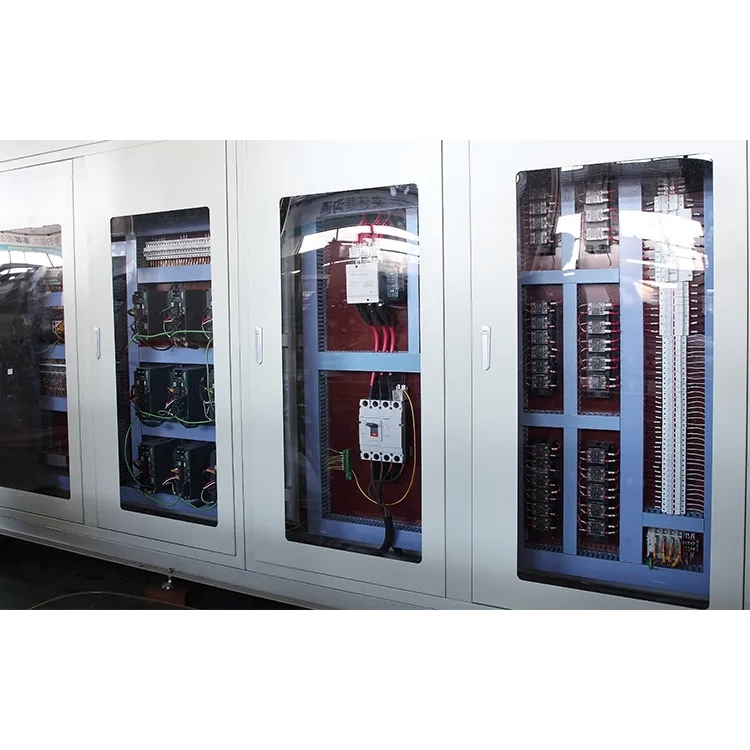

Electric Cabinet
The connection of the electric cabinet is easy. Equipping the air conditioner to prolong the life of the electric parts.

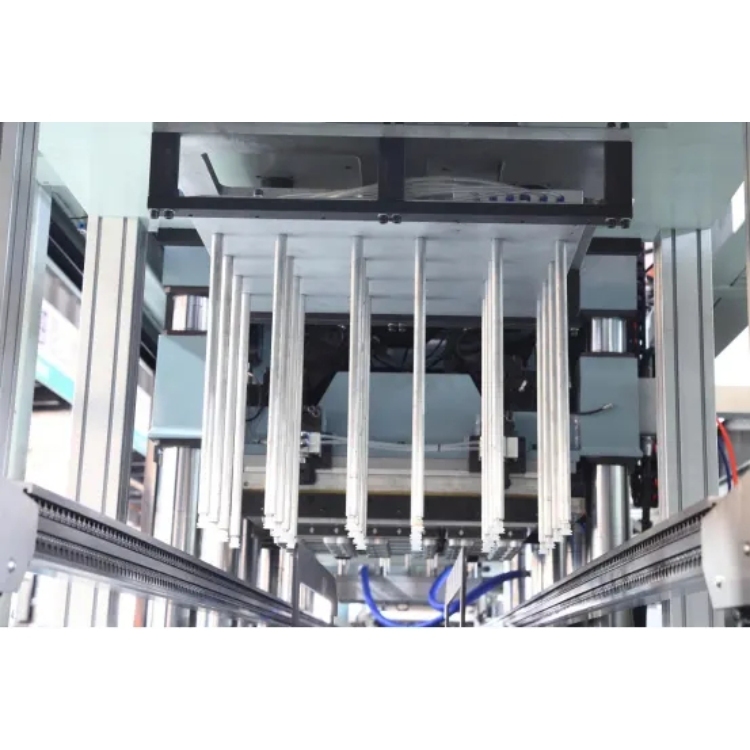

Forming Station
Driven by servo motor to close the mold, with cylinder clamping frame and servo stretching function at the same time.

Title goes here.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

Punching Station
Has an automatic mold fixing system, which can be fixed after the installation and adjustment. Don’t need screws to fix the mold and can short the setting time of the mold. It can improve efficiency. And the cutter has heat functions.

Stacking Station
Stacking station has many options to design that can meet more demands of packing.

Mold Change Bracket
The installation of the mold is easy and safe, it can short the setting time of the mold. Using the mold change bracket can improve the efficiency of changing mold, it has a double safety bolt to ensure safety.
