Multi-Station Plastic Fruit Container Thermoforming Machine Cake Box Thermoforming Machine-3/4 Stations Thermoforming Machine-Zhejiang Sayeah Machinery Co.,ltd.

1. European design, suitable for diversified production lines, safe, efficient, energy-saving and hygienic
2. Compact structure, stable and efficient operation, easy for daily operation and maintenance
3. Unwinding station electric lifting, double roll holder. allow for single operator loading rolls up to 1T
4. Fast and accurate temperature control system (error 1 degree), which can reach the set temperature in ten minutes
5. Various materials can be used, which is suitable for all kinds of small and medium-sized batch orders
6. Quick front mold change, safe and simple die change, reducing machine downtime
7. Materials with strong shrinkage can adopt the single station die forming and punching function to 100% ensure thedie edge cutting accuracy
8. High cost performance,low failure rate, abnormal alarm response mode, reducing the time cost of troubleshooting
9. Remote maintenance, instant judgment of obstacle messages, rapid correction and repair of problems
10. Integrated design of electric cabinet to simplify machine assembly and wiring installation process

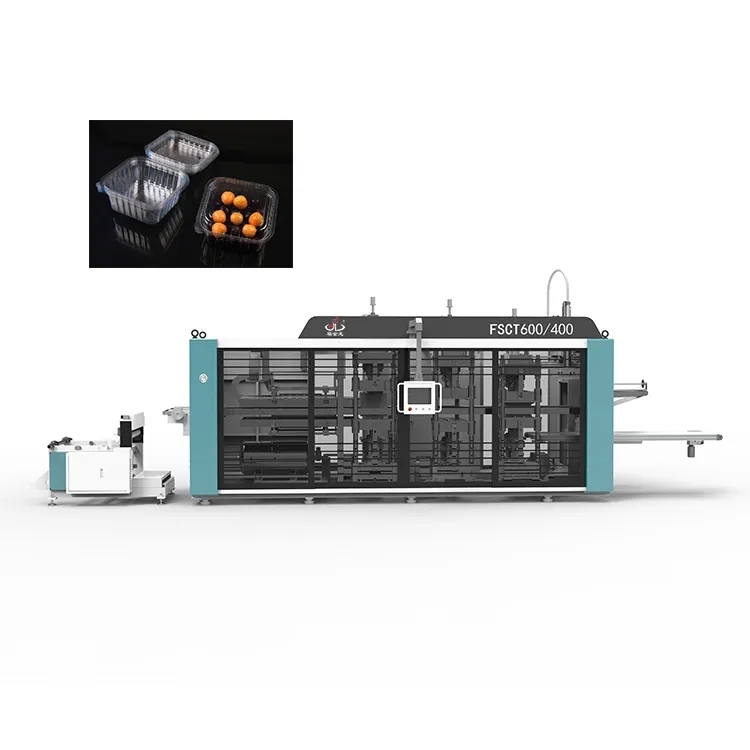

Model	FSCT-600/400-2	FSCT-600/400-3	FSCT-600/400-4
Quantity Of Stations	2	3	4
Sheet Material	PP, PS, PVC, PET, HIPS, PLA, OPS, EPS, C-PET, C-PLA, ABS

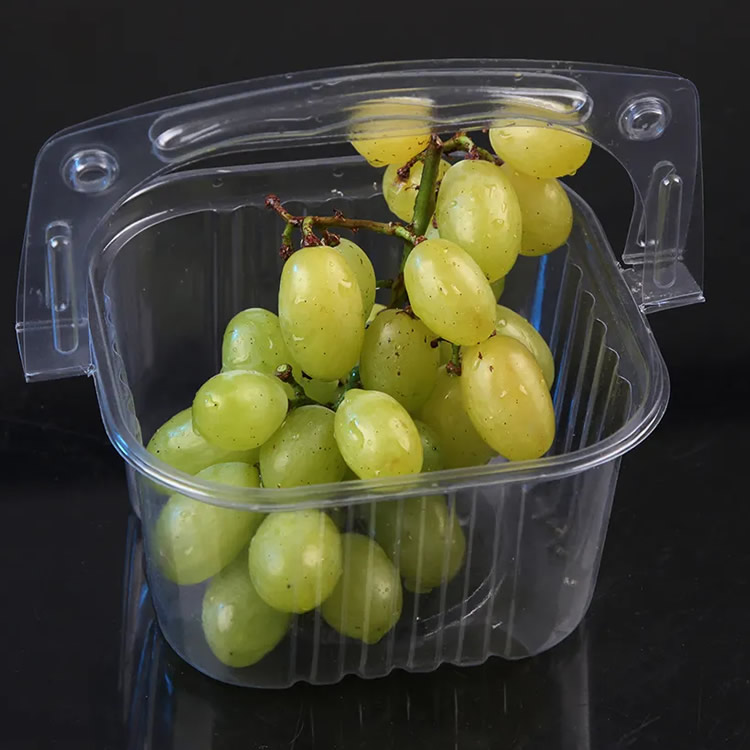

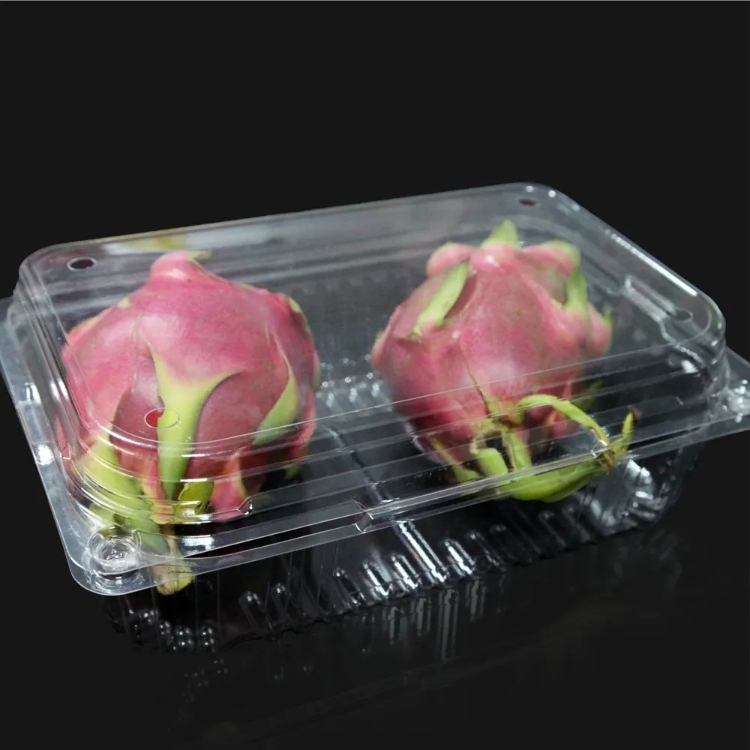

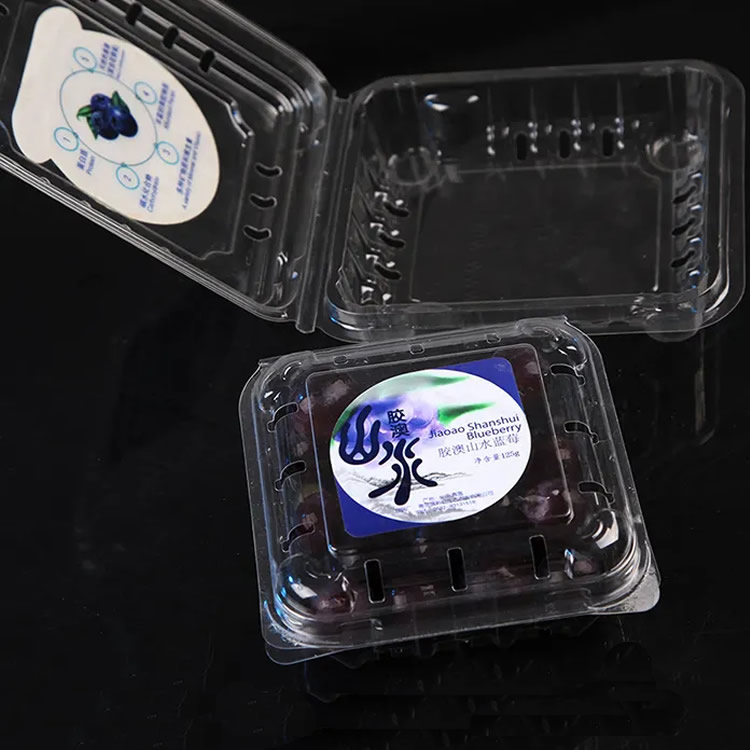

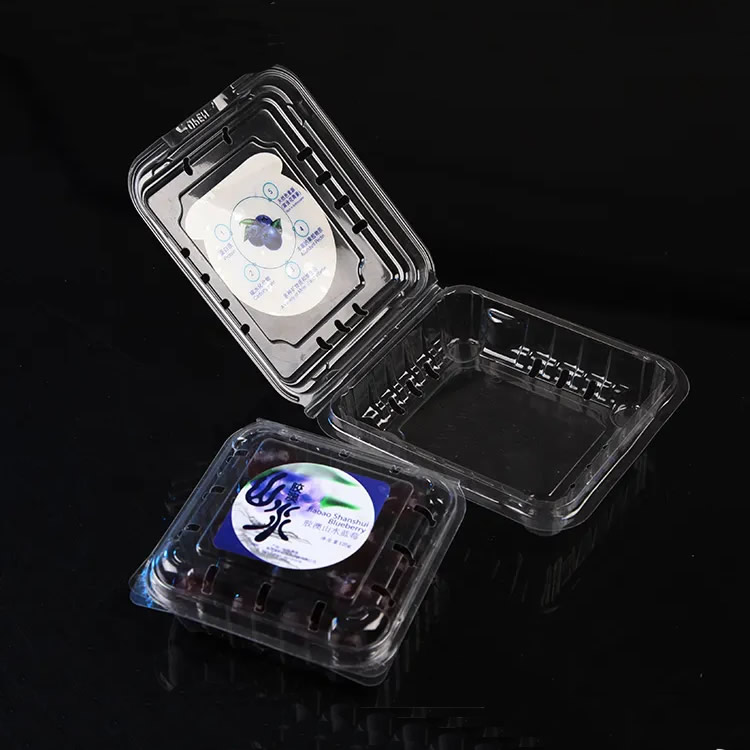

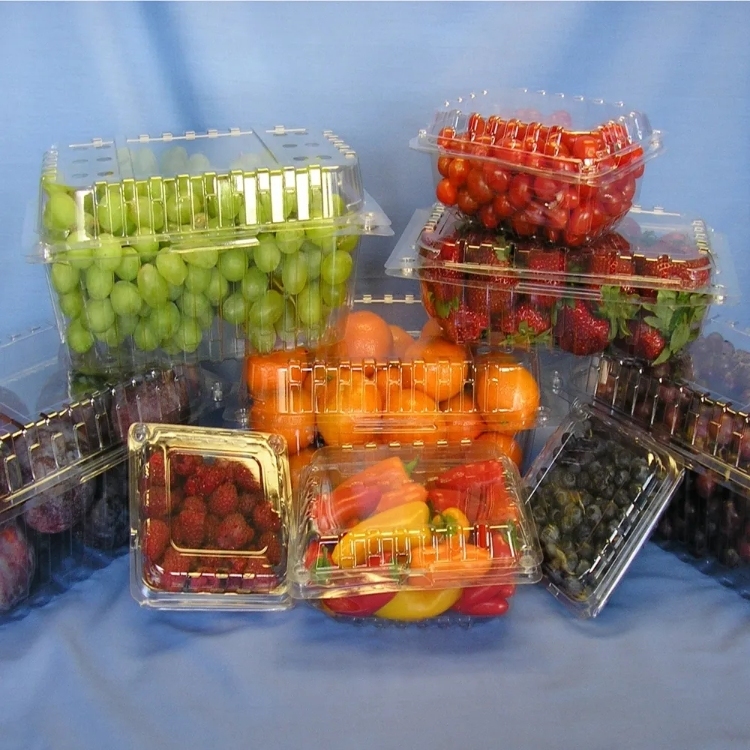

Application	lid, container, egg tray, fruit box, cake box, box, plate, flower pot, etc
Max. Forming Area	600 X 400 mm
Max. Forming Depth	80/40mm
Max. Plastic Sheet Width	640mm
Max. Plastic Sheet Dia.	1100mm,1T
Thickness Of Plastic Sheet	0.15-2mm
Max. No-Load Speed	35Cycles/min
Overall Power	85 KW	90 KW	95 KW
Dimension	L76000 x W1200 x H2600mm	L8200 x W2100 x H2600mm	L9000 x W2100 x H2600mm
Weight	4T	5.5T	7T

Sheet Loading& Feeding Station
Driving by motor. Sheet roll Max diameter 1M. With dust-free plate to keep the sheet clean.

Preheater
Has the In-feed sheet edge pre-heater system before the sheet goes into the heater part,it reduces the defective percentage, keep dust-free environment to improve the quality of the product and prolong the life of conveying chain.

The Chain
The plastic sheet was sent by the sharp tooth, which was driven by the servo-motor. The width of the chain can be adjusted and wear cooling water, which can prolong the life of the chain and reduce the dust.

Ceramic Heater
Temperature is controlled precisely (the difference is within ±1℃). The working life of the ceramic heater is long and adopts the fully enclosed oven. The temperature controlling system is better and saves more energy.

Electric Cabinet
The connection of the electric cabinet is easy. Equipping the air conditioner to prolong the life of the electric parts.

Forming Station
Driven by servo motor to close the mold, with cylinder clamping frame and servo stretching function at the same time.

Title goes here.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

Punching Station
Has an automatic mold fixing system, which can be fixed after the installation and adjustment. Don’t need screws to fix the mold and can short the setting time of the mold. It can improve efficiency. And the cutter has heat functions.

Stacking Station
Stacking station has many options to design that can meet more demands of packing.

Mold Change Bracket
The installation of the mold is easy and safe, it can short the setting time of the mold. Using the mold change bracket can improve the efficiency of changing mold, it has a double safety bolt to ensure safety.
