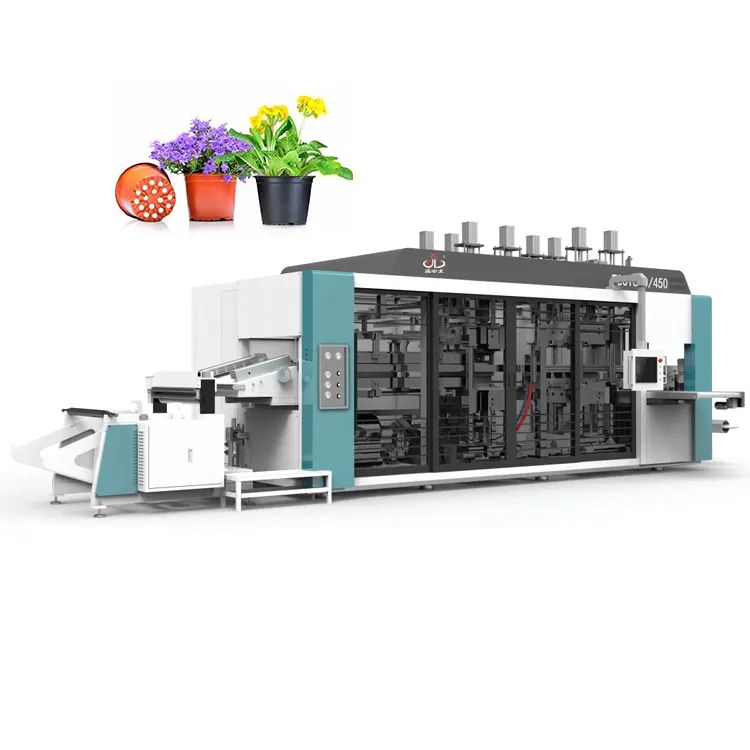

FSCT680/450 Plastic Box And Plate Making Machine Full Automatic Plastic Intelligence Multi-Station Thermoforming Machine-3/4 Stations Thermoforming Machine-Zhejiang Sayeah Machinery Co.,ltd.

1. European design, suitable for diversified production lines, Safe, efficient, energy-saving and hygienic
2. Unwinding station electric lifting, double roll holder. allow for single operator loading rolls up to 1T
3. Operator-friendly HMl, and the system has the function of remote connection
4.Fast and accurate temperature control system (error t 1 degree), with hot furnace detection material drop and air source low pressure protection system
5. Intelligent operation, the whole machine is equipped with formula storage and automatic adjustment without shutdown
6. lt can share molds with models of most wel-known brands at home and abroad, and cooperate with existing production lines
7. Fast mold change system, which can facilitate fast, accurate and safe mold change and reduce machine downtime
8. The forming station has servo motor stretching function, which greatly reduces the long-term mold cost
9. Materials with strong shrinkage can adopt the single station in-mold-forming-cutting function to 100% ensure the edgecutting accuracy
10. High precision forming and cutting technology to achieve the perfect forming and cutting performance of high-speedcontrol and low wear
11. Various styles of automatic stacking technology can be selected to meet your further production needs
12. High cost performance, low failure rate, abnormal alarm response mode, reducing the time cost of troubleshooting
13. Remote maintenance, instant judgment of obstacle messages, rapid correction and repair of problems
14. Under any forming scheme, the clamping frame and plug assist function can be used alone or at the same time, greatly
simplify the mold structure
15.lntearated design of electric cabinet to simplify machine assembly and wiring installation process

Model	FSCT680/450-2	FSCT680/450-3	FSCT680/450-4
Qty of Stations	2	3	4
Max.Forming Area	680 x 450mm
Max.Forming Depth	140/140mm
Max.Sheet Width	720mm
Max.Sheet Roll Dia.	1100mm,1T
Sheet Thickness Range	0.15-2mm
Max.Dry Cycle Speed	55Cycles/min
Overall Power	110kw	120kw	130kw
Dimension(L×W×H)	8800×2300×2500mm	9500×2300×2500mm	10500×2300×2500mm
Machine Weight	8T	13T	17T

Sheet Loading& Feeding Station
Driving by motor. Sheet roll Max diameter 1M. With dust-free plate to keep the sheet clean.

Preheater
Has the In-feed sheet edge pre-heater system before the sheet goes into the heater part,it reduces the defective percentage, keep dust-free environment to improve the quality of the product and prolong the life of conveying chain.

The Chain
The plastic sheet was sent by the sharp tooth, which was driven by the servo-motor. The width of the chain can be adjusted and wear cooling water, which can prolong the life of the chain and reduce the dust.

Ceramic Heater
Temperature is controlled precisely (the difference is within ±1℃). The working life of the ceramic heater is long and adopts the fully enclosed oven. The temperature controlling system is better and saves more energy.

Electric Cabinet
The connection of the electric cabinet is easy. Equipping the air conditioner to prolong the life of the electric parts.

Forming Station
Driven by servo motor to close the mold, with cylinder clamping frame and servo stretching function at the same time.

Title goes here.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

Punching Station
Has an automatic mold fixing system, which can be fixed after the installation and adjustment. Don’t need screws to fix the mold and can short the setting time of the mold. It can improve efficiency. And the cutter has heat functions.

Stacking Station
Stacking station has many options to design that can meet more demands of packing.

Mold Change Bracket
The installation of the mold is easy and safe, it can short the setting time of the mold. Using the mold change bracket can improve the efficiency of changing mold, it has a double safety bolt to ensure safety.
